HD 1080P AHD CVI TVI Fiber Video Digital Optical Converter 16 Port AC 220V Input

Name: HD 1080P AHD CVI TVI Fiber Video Digital Optical Converter 16 Port AC 220V Input
Brand: Olycom
Price: 1 USD

Quality HD 1080P AHD CVI TVI Fiber Video Digital Optical Converter 16 Port AC 220V Input for sale

Brand Name : Olycom

Model Number : OM615-16V↑WT/R

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1 pair

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 1000 pairs per month

Delivery Time : 4~8 working days

Packaging Details : 1 piece in a carton, 2.79kg per piece

Product name : Optical Video Transmitter and Receiver

Fiber : FC, ST SC optional

Case : 1U rack type

Dimension : 485(L)*237(W)*45(H)mm

Weight : 2.24kg/piece (Net Weight)

Warranty : 12 months

Contact Now

16ch AHD CVI TVI Video To Fiber Optic Converter

Introduction

OM615-16V↑WT/R AHD/TVI/CVI optical video transmitter and receiver helps

transmit 16ch AHD/HDTVI/HDCVI video signals on optical fiber
transmit AHD/HDTVI/HDCVI high-definition composite video for long-distance
without delay and compression
720P, 960P, 1080P and other video signals are adaptive
with high reliability
Data, contact closure, audio supportive

Key Features

Low optical link loss – max 30dB
Without EMI, RFI and ground loop
Hot plug-and-play with switch power supply
1U rack robust metal case
Lightning-proof solution
Bi-di transmission on 1 fiber with WDM

Specification

Optical
Wavelength	1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	Single mode:20Km/40km, multimode:550m
Receiving sensitivity	-30dBm
Interface	FC standard, ST/SC optional

Video
Channel Quantity	16ch, from camera to control center
Video Input /Output Amplitude	typical 1Vpp (peak-to-peak), peak 1.2Vpp
Video Input Impedance	BNC 75Ω (unbalanced)
Digital Sampling	64MHZ
Digital Bandwidth	512MHZ
Differential Gain Phase	10%-90% APL DG<1% (typical)
Video Bit Width	8 bit
S/N ratio	>70dB
Interface	BNC

Electrical. Environmental. Mechanical
Operating voltage	AC220V
Operating temperature	-20℃～+70℃
Storage temperature	-45℃～+85℃
Humidity	0~95%non-condensing
Dimension-standalone	485(L)237(W)45(H) mm, 19”1U
Weight	2.24kg/piece (Net Weight), 5.58kg/pair(Gross Weight)

Ordering Details

OM615-16V↑WT/R-FC20	16ch video Tx, singlemode, single fiber, 20Km, FC connector
OM615-16V↑MT/R-FC5	16ch video Tx, multi-mode, single fiber, 0.5Km, FC connector

Item Number Code
OM600	OM600-Video Optical Transmitter / Receiver, 615-desk-top standalone, 625-card style 613-mini series, 610-analog series
V	Video
A	Audio
D	Data
K	Alarm (I/O, contact closure)
P	Telephone
E	Ethernet

M,W	M-Multi-mode, W-Single mode
S,U	S-1310nm, U-1550nm
T,R	T -Transmitter, R-Receiver
FC,ST,SC,LC	Fiber connector type
↑,↓, ↑↓	↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional
1,2,3,…	Digits ahead of signal-quantity of required channel
05, 20, 40…	Digits next to fiber connector-working distance

Application

HD 1080P AHD CVI TVI Fiber Video Digital Optical Converter 16 Port AC 220V Input

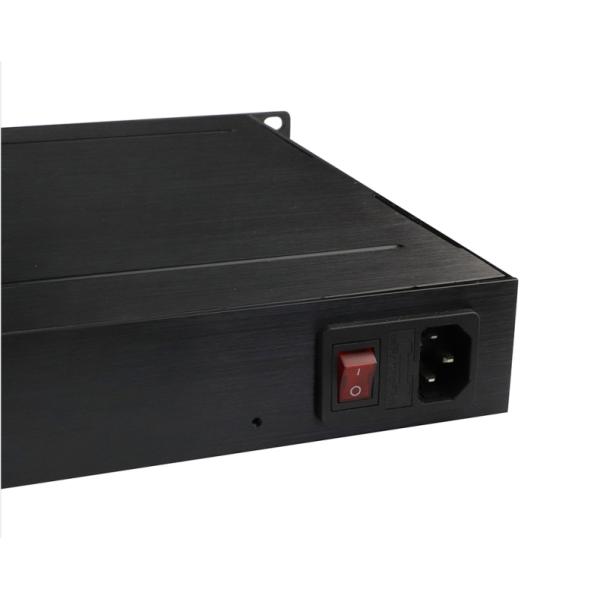

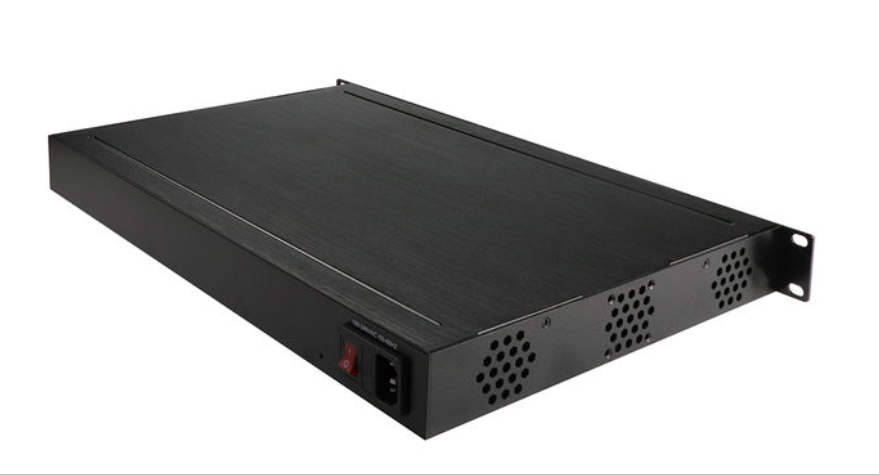

Product Photos

HD 1080P AHD CVI TVI Fiber Video Digital Optical Converter 16 Port AC 220V Input
